Description
Optical Power Meter OPM-UP30A
Specification
| Model | OPM-UP30A |
|---|---|
| Calibration wavelength [nm] | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Detector type | f0.3mm InGaAs |
| Measurement range [dBm] | -70~+3 |
| Uncertainty [dB] | +0.2 (5%) |
| Linearity [dB] | 0.01 |
| Display resolution [dB] | 0.01 |
| Frequency ID [Hz] | 270, 330, 1k, 2k |
| Connector | FC/SC/ST/LC interchangeable |
| Battery operating time [h] | 240 without backlight |
| Operating temp. [oC] | -10~+60 |
| Storage temp. [oC] | -25~+70 |
| Dimensions | 190 x 100 x 48 |
| Weight | 310 |
Optical Power Meter
±5% -70..+10dBm
219,00 €

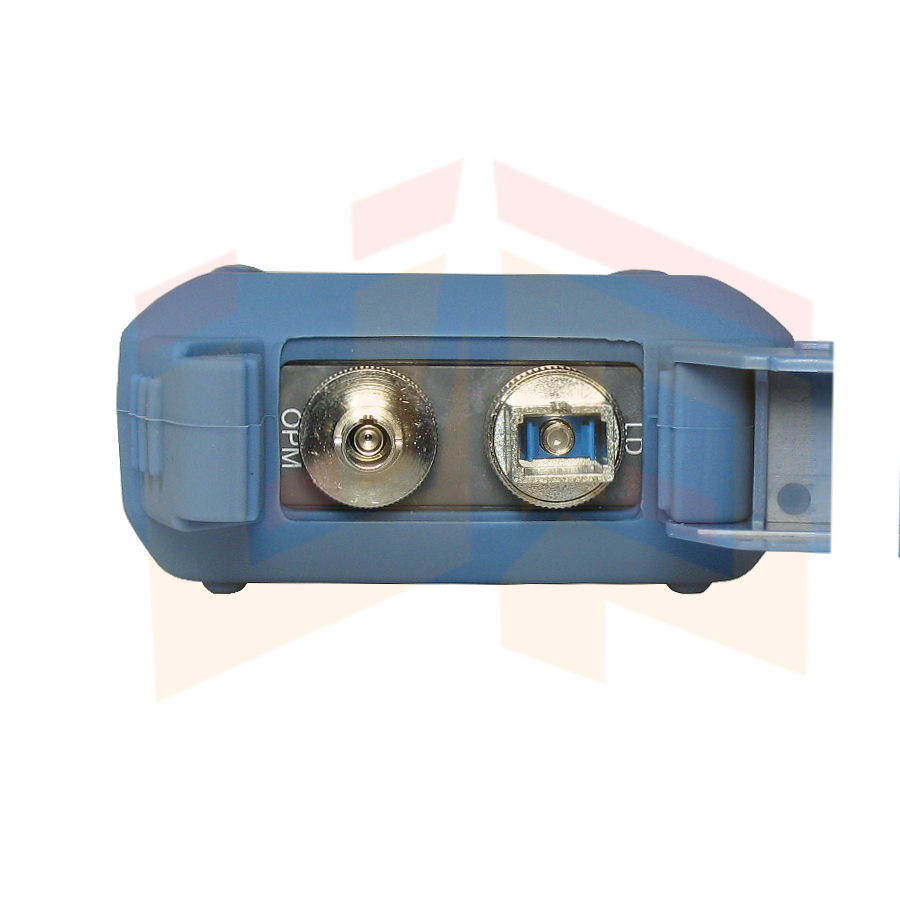

The OPM-UP80C devices can be used for absolute and relative optical power measurement and USB port allows you to export saved results to PC
Compact, robust and reliable price make Optical Power Meter OPM-UP80C perfect instrument for field use by installers, technicians and engineers.
FEATURES
- Robust, shock-proof and splash-proof design for field operation,
- 7 Calibrated wavelengths (850, 980, 1300, 1310, 1490, 1550, 1625nm),
- Wave ID Auto wavelength identification & switching,
- Frequency ID – auto frequency identification,
- Build in 5mW Visual Fault Locator,
- 10 minutes Auto-off function,
- User self calibration function,
- LCD display with backlight,
- Up to 150 hours battery life.
Share this product
Optical Power Meter OPM-UP30A
Specification
| Model | OPM-UP30A |
|---|---|
| Calibration wavelength [nm] | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Detector type | f0.3mm InGaAs |
| Measurement range [dBm] | -70~+3 |
| Uncertainty [dB] | +0.2 (5%) |
| Linearity [dB] | 0.01 |
| Display resolution [dB] | 0.01 |
| Frequency ID [Hz] | 270, 330, 1k, 2k |
| Connector | FC/SC/ST/LC interchangeable |
| Battery operating time [h] | 240 without backlight |
| Operating temp. [oC] | -10~+60 |
| Storage temp. [oC] | -25~+70 |
| Dimensions | 190 x 100 x 48 |
| Weight | 310 |
