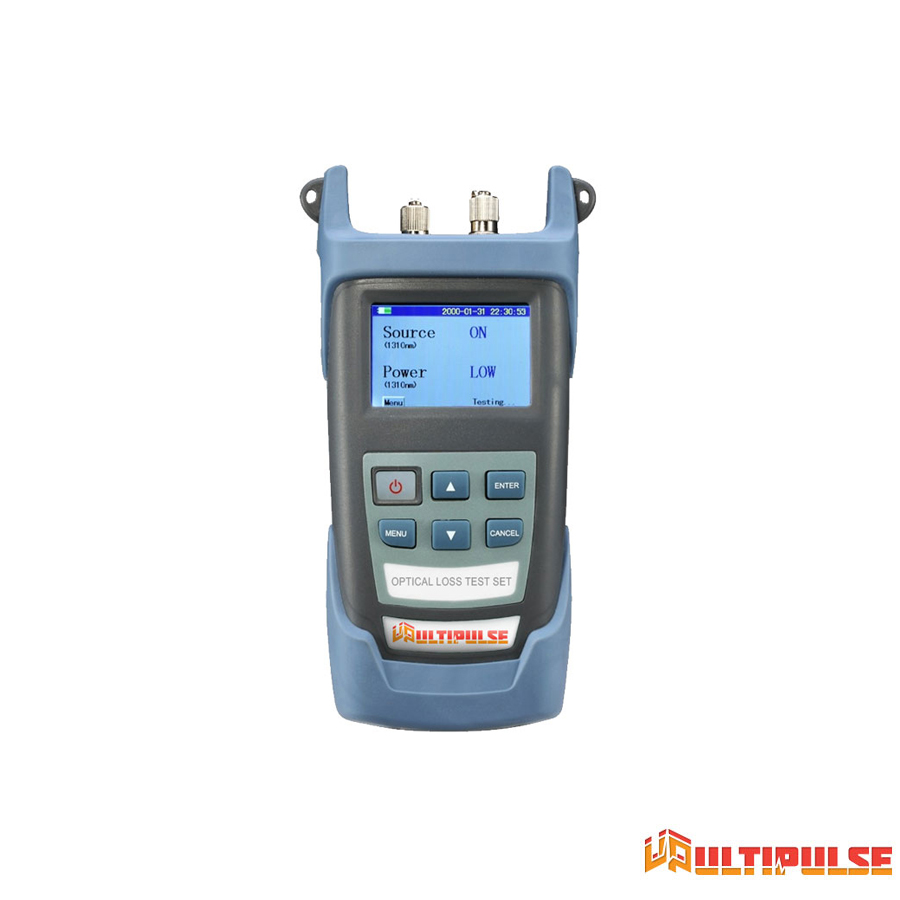

Loss Test Set LTS-UP32-2LM
Optical Loss Test Set is a universal rugged optical multimeter combining a light source and a power meter in a single unit for multimode fiber testing for lab, installation, maintenance and troubleshooting routines. Incorporates all the outstanding features of handheld light source (OLS-UP30A-2L) and power meter (OPM-UP50 series).
Download a datasheet
Loss Test Set LTS-UP32-2LM
Specification
| Model | LTS-UP32-2LM |
|---|
| Light source | 850 / 1300 |
|---|
| Calibration wavelength [nm] | 850, 980, 1300, 1310, 1490, 1550, 1625 |
|---|
| Detector type | f0.3mm InGaAs |
|---|
| Measurement range [dBm] | -50~+26 |
|---|
| Uncertainty [dB] | +0.15 (3.5%) |
|---|
| Linearity [dB] | 0.01 |
|---|
| Display resolution [dB] | 0.01 |
|---|
| Frequency ID [Hz] | 270, 1k, 2k |
|---|
| Optical connectors | Light Source: fixed FC; Power Meter: FC/SC/ST/LC interchangeable |
|---|
| Battery operating time [h] | ~15 |
|---|
| Operating temp. [oC] | -10~+60 |
|---|
| Storage temp. [oC] | -25~+70 |
|---|
| Dimensions | 190 x 100 x 48 |
|---|
| Weight | 280 |
|---|
