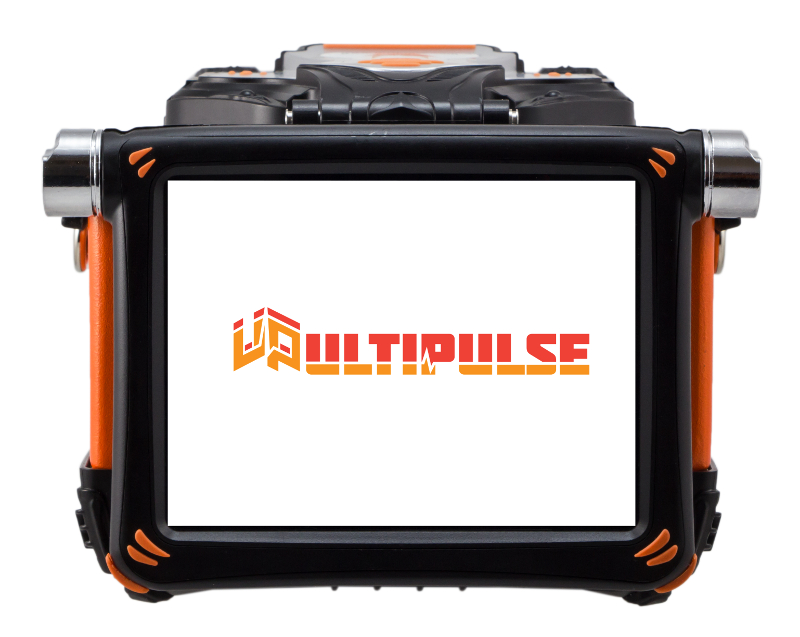

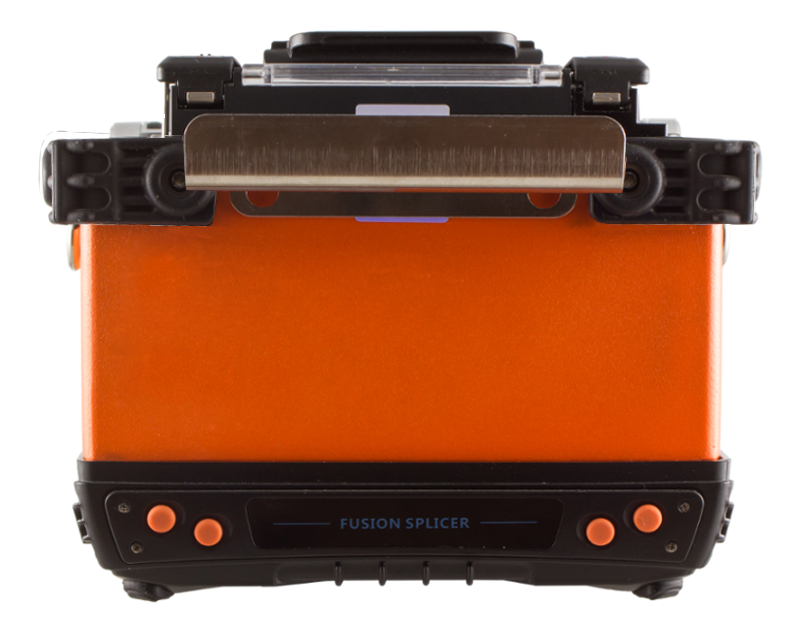

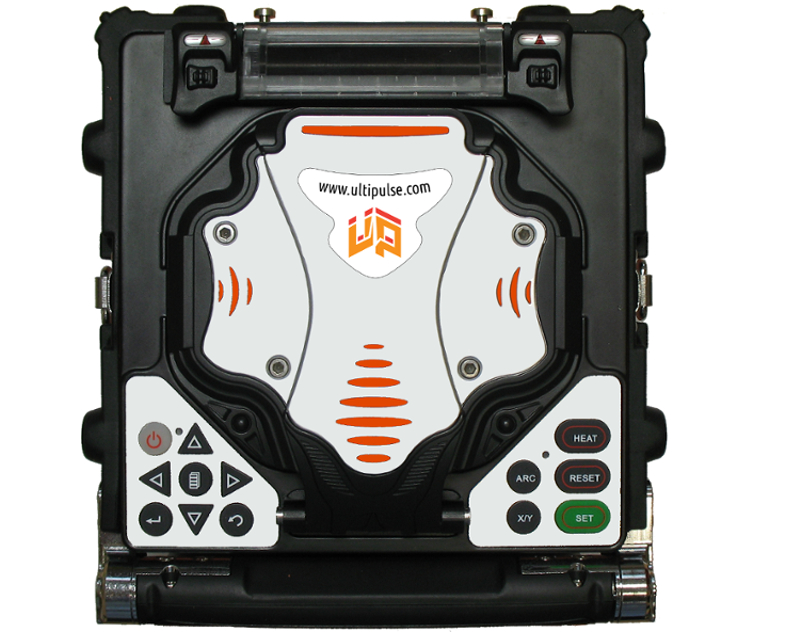

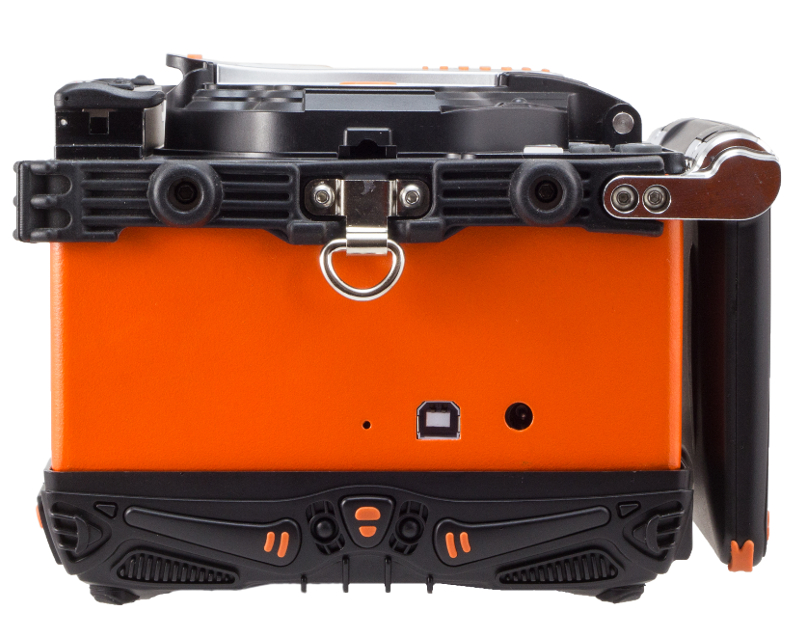

Fusion Splicer FSP-UP80H

Latest addition to our family of fusion splicers:
FSP-UP80H

• 20% smaller in volume
• 20% lighter
• 30% faster heating oven

Splicer offers the latest technology of core alignment fusion splicing with super-fast heating oven. Total process of fusion splicing can be finished within 10 seconds and sleeve heating in only 25 seconds. This digital fusion splicer with automatic focus function and fast image processing have the ability to detect cleaved fiber end face imperfections and prevent faulty splices.

Read more

CALL US NOW
+33 9 75 12 37 78 (English language)

Fast & Free shipping to Spain!

  • preview
  • preview
  • preview
  • preview

Smaller, Lighter, Faster!

Now only 2,3kg with battery!
With compacted design we retained all great features of FSP-UP60: fast and accurate splicing, mirror-free design and portability.

Large LCD

Large 5.1” 640×480 LCD color display with magnification up to 310 times for clear view of spliced fibers.

Core Alignment

Fast fusion splicer with core alignment and active V-grooves technology. Average splice time – only 10 seconds. Clad or manual alignment available.

Fiber Holders

All splicers come with fixed sheath clamps.
“-H” version is equipped with a set of easily exchangeable fiber holders for splicing various types of cables and Splice-On Connectors (SOC) for efficient FTTx deployment and maintenance.

Easy to use

Graphical User Interface (GUI) for ease-of-use navigation. Factory and user-definable programs. Easy maintenance with step-by-step instructions on screen.

Durable & Versatile

Rugged carry case enclosures fusion splicer, fiber cleaver, fiber stripper, AC power adaptor (12V car power adaptor available) and miscellaneous altogether in compact case.
