| Model | OTI-UP33 |
|---|---|
| Detected tones | 270 Hz, 1 kHz, 2 kHz |
| Detected λ | 800 ~ 1700 nm |
| Adaptor heads for fiber types | SMF: 250 μm, 900 μm, 2 mm, 3 mm |
| Power Reading | -50 ~+10dBm |
| Detection sensitivity | -46 dBm typ. @ 1310 nm, -50 dBm typ. @ 1550 nm |
| Insertion loss, typical, 250 µm | ≤ 0.4 dB @ 1310 nm, ≤ 2.5 dB @ 1550 nm |
| Insertion loss, typical, 3 mm | ≤ 0.8 dB @ 1310 nm, ≤ 2.5 dB @ 1550 nm |
| Display | Traffic direction, Tone frequency, Low battery, Relative core power |
| Dimensions [mm] | 209 x 33 x 31 |
| Weight [g] | 215 |
255,00 €

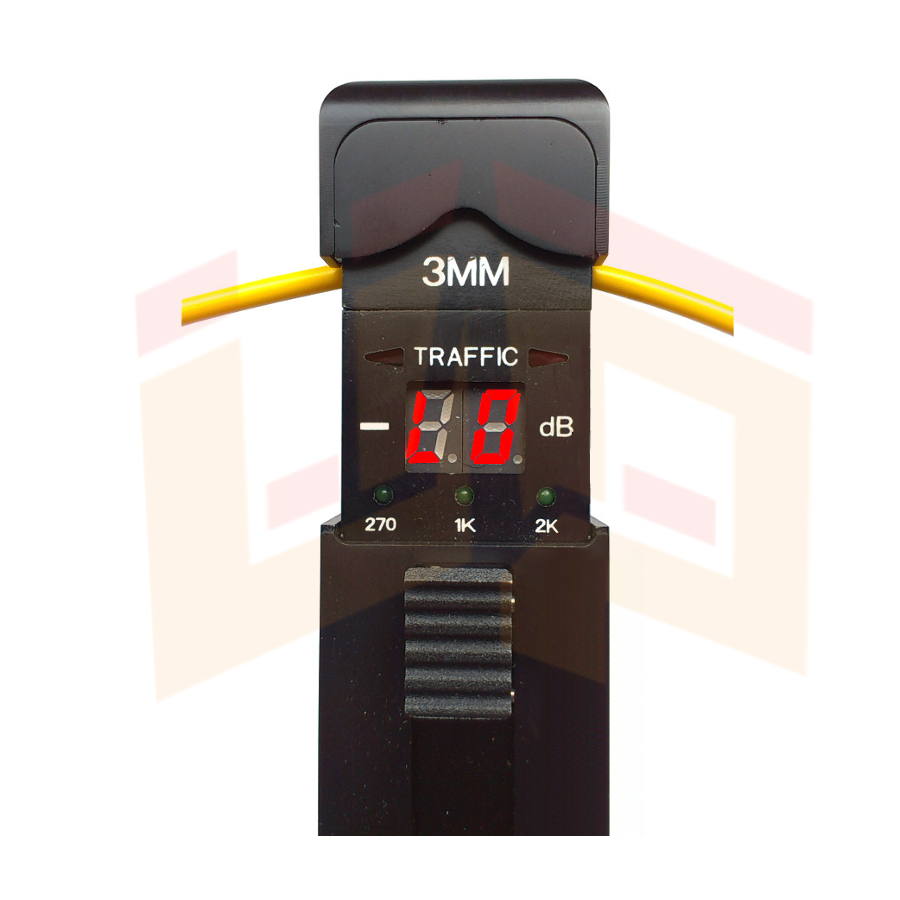

Optical Traffic Identifiers are easy to use instruments used to identify optical test tones, live traffic and optical power levels in singlemode fibers.
Widely used to identify fibers to avoid accidently disconnecting live systems, for checking of continuity and measuring approximate core power in the fiber.
Various field-interchangeable adaptor heads are supplied enabling rapid reconfiguration for a variety of fiber cord diameters with minimal bend loss incurred.
FEATURES
APPLICATIONS
| Model | OTI-UP33 |
|---|---|
| Detected tones | 270 Hz, 1 kHz, 2 kHz |
| Detected λ | 800 ~ 1700 nm |
| Adaptor heads for fiber types | SMF: 250 μm, 900 μm, 2 mm, 3 mm |
| Power Reading | -50 ~+10dBm |
| Detection sensitivity | -46 dBm typ. @ 1310 nm, -50 dBm typ. @ 1550 nm |
| Insertion loss, typical, 250 µm | ≤ 0.4 dB @ 1310 nm, ≤ 2.5 dB @ 1550 nm |
| Insertion loss, typical, 3 mm | ≤ 0.8 dB @ 1310 nm, ≤ 2.5 dB @ 1550 nm |
| Display | Traffic direction, Tone frequency, Low battery, Relative core power |
| Dimensions [mm] | 209 x 33 x 31 |
| Weight [g] | 215 |
