Visual Fault Locator
10mW
29,00 €
This essential tool is a visible red laser designed to inject visible light into a fiber. Sharp bends, breaks, faulty connectors and other faults will “leak” red light allowing technicians to visually spot the defects.
Device is ideal for locating a large number of defects that occur at connection points in and around fiber cabinets which are hidden in an OTDRs “blind-spot” or dead-zone.
Download datasheet

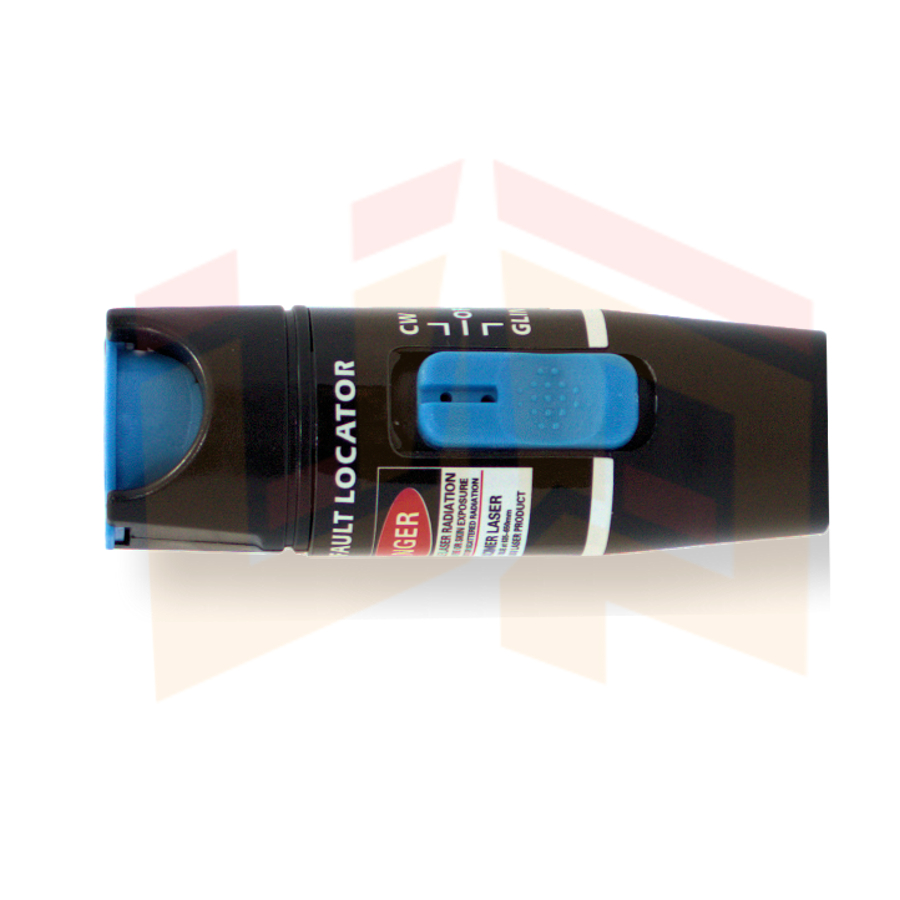

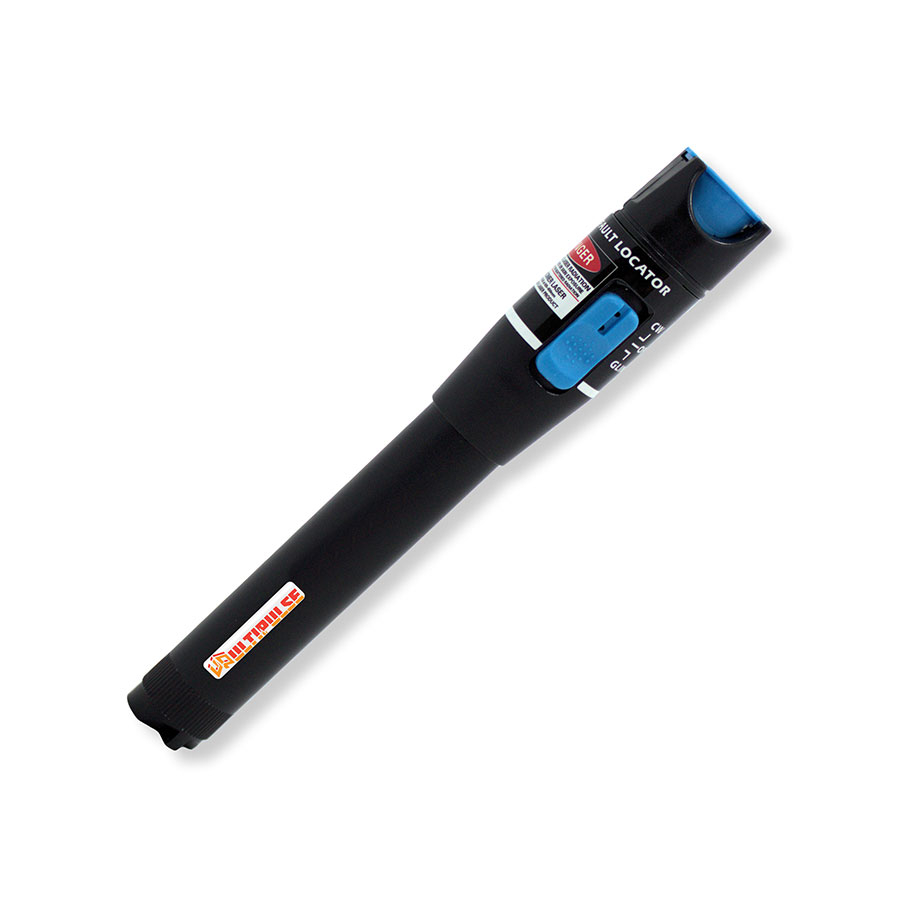

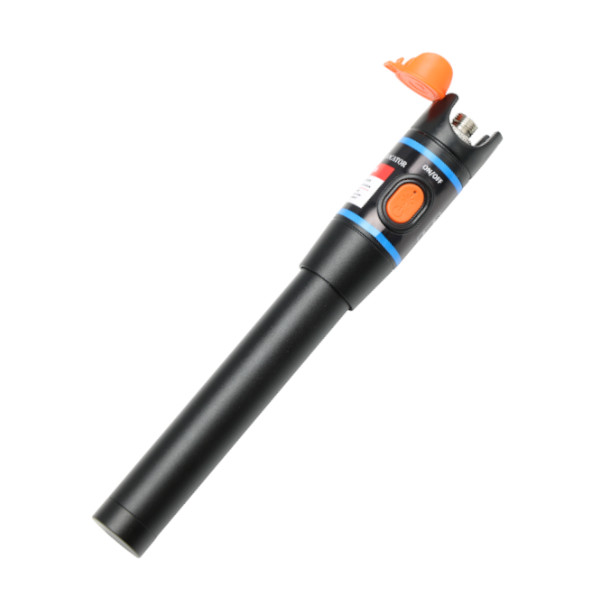

Visual Fault Locator VFL-UP310
Specification
| Model | VFL-UP310 |
|---|
| Wavelength [nm] | 650nm ±10nm |
|---|
| Emitter type | FP-LD |
|---|
| Work mode | CW or blink mode (2-3Hz) |
|---|
| Power output [dBm] | 10dBm (10mW) |
|---|
| Estimated range | up to 5km over MM fiber up to 10km over SM fiber |
|---|

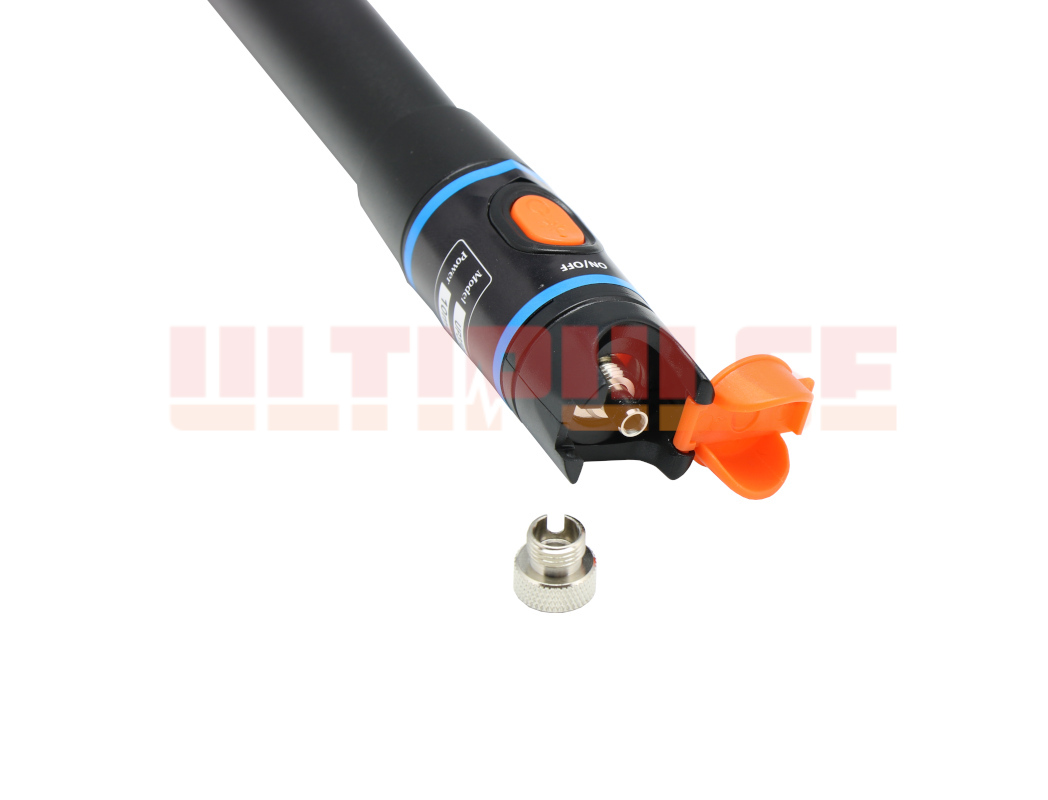

| Optical connectors | 2,5mm universal connector /FC, SC, ST, E2000 (PC & APC)/ adaptor head with cap optional adaptor for 1,25mm ferrule LC connectors |
|---|
| Battery operating time [h] | 15 |
|---|
| Operating temp. [oC] | -10~+45 |
|---|
| Storage temp. [oC] | -40~+70 |
|---|
| Dimensions [mm] | 173mm x f 23mm |
|---|
| Weight [g] | 90 |
|---|
