PON Optical Power Meter OPM-PON-UP80



1310 upstream measurement1490 downstream measurement1550 downstream measurement
Passband [nm]1260~13601470~15051535~1570
Measurement range [dBm]-40~+10-45~+10-45~+23
Isolation1310nm dB]- >40 >40
Isolation 1490nm [dB] >40- >40
Isolation 1550nm [dB] >40 >40-
Measurement Accuracy
Total uncertainty [dB]±0.5
PDL [dB]<±0.25
Linearity [dB]±0.1
Pass through Insertion Loss [dB]~1.5
Regular Optical Power Meter Mode
Measurement UnitdBm/ xW
Resolution [dB]0.01
Operating temp. [oC]-10~60°C
Storage temp. [oC]-25~70°C
Dimensions [mm]200 x 90 x 43
UP_PON-UP80C-FRONT

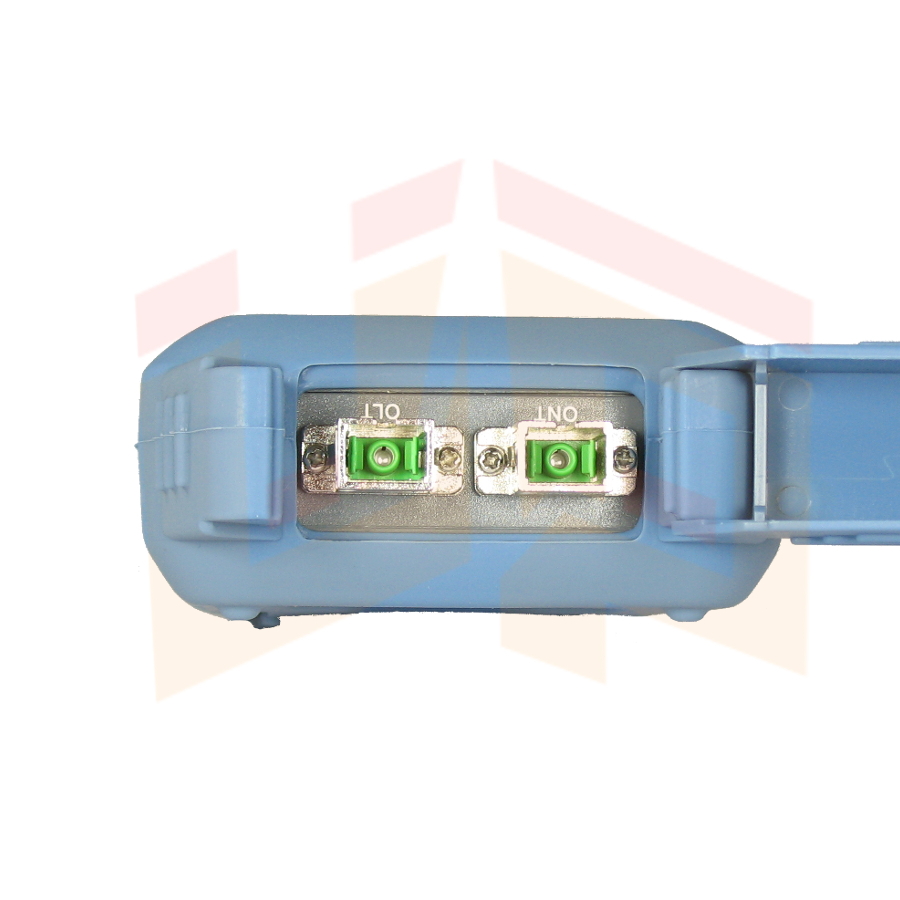

UP_PON-UP80C-FRONTUP_PON-UP80C-TOP

PON Optical Power Meter OPM-PON-UP80

399.00 €

Highly versatile handheld power meter that enables quick and accurate, on-site testing of all PON signals, anywhere on the network.
The OPM-PON-UP80 acts as a pass-through device, allowing the concurrent measurement and simultaneous display of all PON signals – voice, data and video (1310/1490/1550nm). Can be used as regular optical power meter with 3 calibrated wavelengths. Fixed /APC port adaptors.

Download a datasheet
SKU: OPM-PON-UP80 Category: Tags: , , ,
Share this product
  • Download a datasheet " target="_blank" data-toggle="tooltip" data-placement="top" title="" data-original-title="pinterest">
  • Download a datasheet http://ultipulse.com/shop/pon-power-meters/pon-optical-power-meter-opm-pon-up80/" data-toggle="tooltip" data-placement="top" title="" data-original-title="mail">

Product Description

FEATURES

  • Provides simultaneous measurement at three wavelengths (1310nm, 1490nm, 1550nm),
  • Large 2.7” LCD display with backlight function,
  • Three calibrated wavelengths available when used as regular optical power meter (1310,1490&1550nm),
  • 10 minutes Auto-off function,
  • Data upload via USB cable,
  • 99 storage test records,
  • On-display icons represent 3 types of signal conditions: Pass, Warn or Fail with user-adjustable threshold levels.

PON Optical Power Meter OPM-PON-UP80



1310 upstream measurement1490 downstream measurement1550 downstream measurement
Passband [nm]1260~13601470~15051535~1570
Measurement range [dBm]-40~+10-45~+10-45~+23
Isolation1310nm dB]- >40 >40
Isolation 1490nm [dB] >40- >40
Isolation 1550nm [dB] >40 >40-
Measurement Accuracy
Total uncertainty [dB]±0.5
PDL [dB]<±0.25
Linearity [dB]±0.1
Pass through Insertion Loss [dB]~1.5
Regular Optical Power Meter Mode
Measurement UnitdBm/ xW
Resolution [dB]0.01
Operating temp. [oC]-10~60°C
Storage temp. [oC]-25~70°C
Dimensions [mm]200 x 90 x 43
